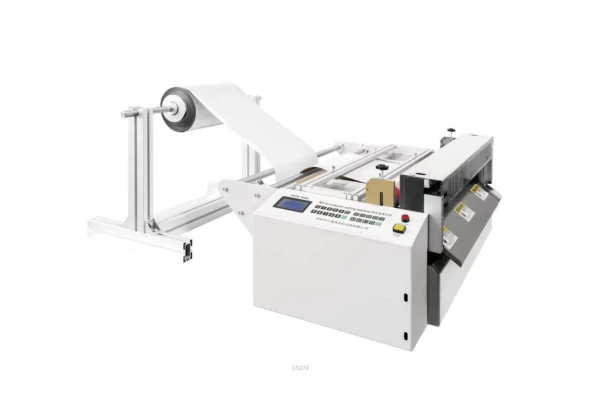

Cut To Length Reel To Sheet Cutting Machine For Aluminum Foil
This aluminum foil roll to sheet cutting machine is a fully automatic foil guillotine cutter machine that cut the roll of foil to sheet in desired length, besides that aluminum and copper foils can be cut, non-woven fabric, wall paper, pvc film, PE film can be cut too.
- Description
- Inquery
Cutting speed: 100 sheets per minutes (example as 50mm cutting length for each piece)
Appropriate cutting materials: non-woven fabrics, wall paper, pvc film, PE film, reflective film, copper foil, aluminum foil and etc.
The said machine is exclusive of decoiler.
Aluminum alloyed decoiler payload is 10-15KG, will be sent with machine, free of charge.
| Model No |
Cutting Tool |
Cutting Width mm |
Cutting Length mm |
Precision mm |
Cutting Thickness mm |
Speed mm |
Weight Kg |
| HZX-400 | Upper and Lower Blade | 聽 聽 1-360 | 0-9999.9
|
聽 聽 聽 聽0.1 |
0.5 |
34 | 50 |
| HZX-500 | 聽 聽 1-460 | 聽 聽 聽 聽0.5 | 聽 聽 聽 聽 75 | ||||
| HZX-600 | 聽 聽 1-560 | 聽 聽 聽 聽0.7 | 聽 聽 聽 聽 83 | ||||
| HZX-700 | 1-660 | 0.8 |
92 |
