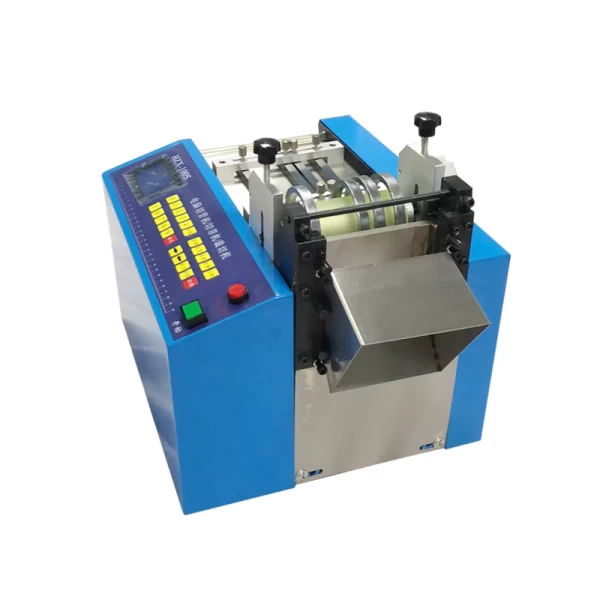

Fully Automatic Brake Cable Cutting Machine

This model 100S聽automatic clutch wire cutting machine is modified based on model 100,聽a fully automatic clutch wire cut to length machine driven by stepper motor, designed for cutting clutch wire,聽wire rope, aluminum sheet, copper sheet, welding tape, wire, cable, stainless steel wire, etc.聽set cutting length and quantity, auto feeding, working and stop.

  • Description
  • Inquery

Product Name Fully Automatic Brake Cable Cutting Machine Model No. HZX-100S
Voltage 220/110V Cutting length 0.1-999.9mm
Cutting width 0-100mm Weight 32KG
Blade Material Import HSS 65 grade hardness Size 400x350x390mm
Power 600W Stepper motor driver HZX-100D11
Blade AC decelerating motor Feeding 86 Stepper motor
Function It can cut all kinds of metal and non-metal sheets, all kinds of pipes, all kinds of tapes, cutting materials: wire rope, aluminum sheet, copper sheet, welding tape, wire, cable, stainless steel wire, etc.
Warranty One year limited for whole machine, two years limited for main board. Can be tailored for customer鈥檚 requirement.
