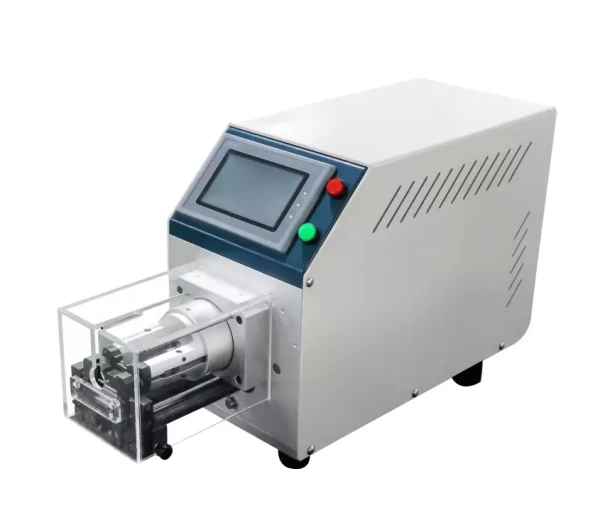

Rotary Coaxial Cable Stripping Machine

1. The semi-automatic coaxial cable stripping machine is suitable for peeling all kinds of flexible and semi-flexible coaxial wires, charging pile cables, medical wires, etc. in the medical and automotive industries in the communications industry.
2. Man-machine interface, easy to understand and operate, can strip up to 9 layers, and store up to 99 kinds of processing data;
3. The design and exquisite structure of the rotary cutter head and the four-piece rotary cutter improve the stability of stripping and the working life of the cutter;
4. The semi-automatic coaxial wire stripping machine adopts servo motor, precision ball screw and multi-point motion control system, with stable and efficient performance.
5. The cutter is coated with imported tungsten steel and titanium alloy, which is sharp and durable;
6. The semi-automatic coaxial wire stripping machine can meet the special requirements of multi-layer stripping, multi-segment stripping and automatic continuous starting.
7. Continuous innovation has been made on the original models, the functions and structure are more user-friendly, and the performance is more powerful.

  • Description
  • Inquery

Technical parameter description.
Larger processing cable diameter: up to 18mm.
Cut depth unit: 0.01mm.
Larger peeling length: 90mm.
The larger number of peeling layers is 9 layers.
Driving mode: motor / ball screw drive.
Display mode: touch screen.
Blade: 4 pieces, material: high speed powder steel.
Fixed chip: 4 pieces, material: Japanese SKD11.
Wire clamping device: motor drive, clamping strength program control.
Productivity: 400–600pcs/h (depending on cable type and length).
Opening mode: pedal.
Power supply: 220V Compact 50HZ; Power: 600W; weight: 40KG.
Form factor: 720X230X350mm.
Working environment: 0 color 50 degrees, moderate dryness, no vibration of the work table
