Pneumatic Wire Stripper Mastery Tip for Precision Stripping

Harness the Power of the Crimping Trio: Terminal Crimping Applicator, Benchtop Wire Crimping Machine, and Wiring Crimping Tool

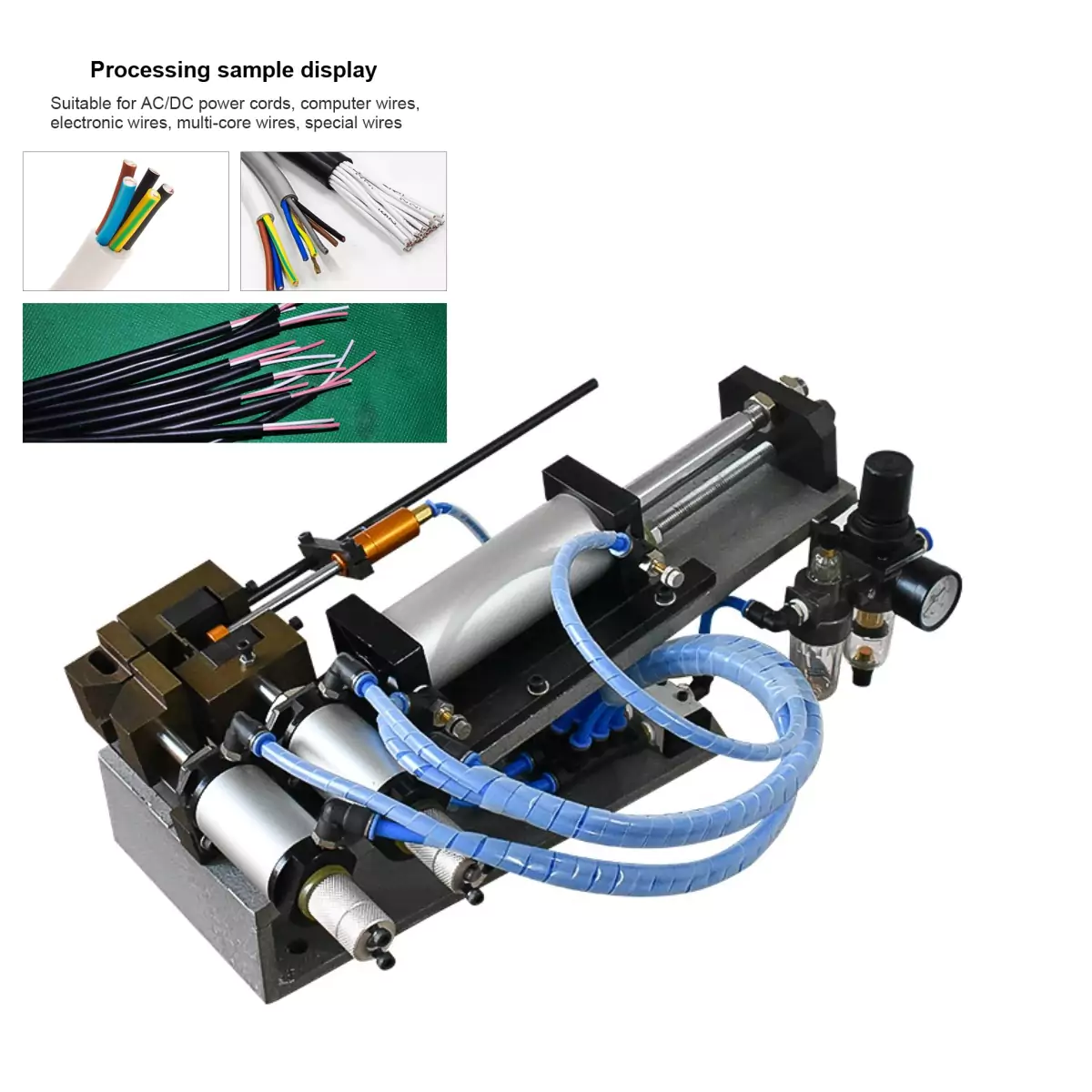

Are you familiar with the secrets behind the optimal use and adjustment of your pneumatic wire stripping machine? Prepare to Embark on a Journey of Precision and Innovation: Unveiling the Secrets to Conquering Wire Stripping Challenges with Our Cutting-Edge Pneumatic Wire Stripping Tool. From the very basics to intricate adjustments, this guide will equip you with the skills you need to elevate your wire stripping experience.

Mastering the Adjustments: Unleash the Potential

1. Air and Power Unite: Begin by connecting the air inlet pipe to an air supply of 4.5-7kg/sq.cm.
2. Power Up: Plug the power cord into a 220V 50Hz power supply to awaken your machine’s potential.
3. Step into Action: Engage the foot switch to set the cylinders into motion, initiating the dance of precision.
4. Double-Cutters Delight: If you’re wielding the double-cutters model, the process remains consistent. This design gracefully combines wire cutting and stripping in one fluid motion.

Remember these points of emphasis:

A) A Perfect Gap: Maintain a 1.5mm gap between the cutter and the stripping blade, ensuring a flawless performance.

B) Gasket Magic: When adding or removing a gasket, ensure compatibility between upper and lower thickness to avoid any unwelcome collisions.

C) Tailored Stripping: Adapt gaskets based on your wire stripping length. For instance, for a 3.0mm peeling, embrace a pair of 1.5mm gaskets, creating a harmonious 1.5 + 1.5 = 3.0mm dance.

D) Longevity in Stripping: For longer stripping endeavors, opt for a single knife, tailoring your peeling length to your specific needs.

5. Precision Lockdown: Secure your success by meticulously tightening the headless screws at the heart of the medium. The tail master cylinder and its stroke adjusting nut orchestrate wire pulling, allowing you to fine-tune the stroke length. Achieve your desired wire stripping prowess and secure your success with a steadfast nut lock.
6. Fine-Tuning Mastery: The two fine nuts hold the key to operational excellence. Loosen the middle headless screw, then focus on nut 1 and nut 2. Nut 1 commands the upper clamp block’s movements, while nut 2 guides the knife mold’s journey. When dealing with wires of diverse sizes, remember: turning the nut upward (counterclockwise) tightens the grip, while a downward (clockwise) twist loosens it.

Elevate Your Experience: Embrace the Possibilities

1. Air of Confidence: Operate with finesse as the air-powered solenoid valve takes control.
2. Swift and Short: The minimal distance between the knife and clamping seat is a boon for handling compact computer cables and specialized short wires.
3. Unleashing Precision: Whether You’re Tackling Partial or Full Stripping, Our Pneumatic Wire Stripping Machine Guarantees Speed and Accuracy for a Flawless Stripping Experience.

Unveil the true potential of your wire stripping endeavors with our pneumatic wire stripping tool. Precision, innovation, and mastery await your command, transforming wire stripping from a challenge into a symphony of efficiency.

Disclaimer: This creatively imagined piece aims to provide a fresh perspective on troubleshooting solutions for pneumatic wire stripping tools. For accurate technical guidance, kindly consult the official product manual.
