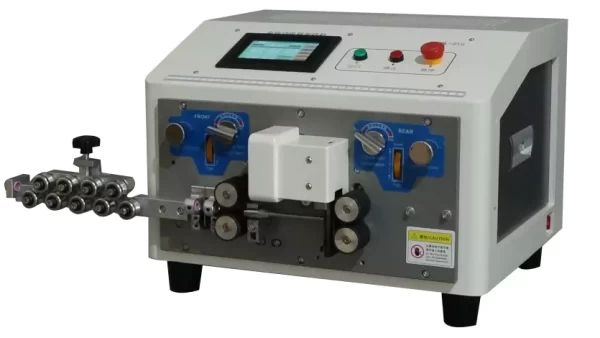

this is an automatic wire stripping machine specialized for processing 10 square mm wires.
this is 10 square mm wire processed by automatic wire stripping machine.
automatic-10sqmm-wire-cutting-stripping-machine
wire

Automatic 10SQMM Wire Cutting Stripping Machine

this is automatic wire stripping machine specialized for processing 2awg cable. Automatic 2AWG Wire Cutting Stripping Machine
This is automatic wire cutting stripping machine specialized for multi-core cable whose diameter is no more than 6mm. Automatic Multi-core Cable Cutting Stripping Machine

Experience unparalleled precision with the FY-810 Fully Automatic 10 SQMM Wire Stripping Machine. Featuring a silent hybrid stepping motor, it delivers an exceptional stripping precision of 0.01mm. Handle a wide range of jobs with a head stripping length of 0.1−25mm and tail stripping length of 0.1−70mm. Its high productivity reaches up to 4550 pieces per hour (for 50mm wires), all controlled via a full-touch 4.3-inch LCD screen.

Category: Tag:

Features Description

  • Self-developed motion control board (single-chip microcomputer)
  • Full-touch 4.3-inch LCD display
  • Low-noise hybrid subdivision driver
  • One-touch correction for wire length error
  • Unique, sleek, and precision design

Technical Parameters

ParameterSpecificationParameterSpecification
ModelFY-810FunctionWire cutting, double-end stripping, middle stripping
Power SupplyAC220V 50/60HZCutting Wire Core Range0.1−10mm2
Machine Dimensions470mm×450mm×350mmCutting Length0.1mm−99999.9mm
Machine Weight38kgStripping LengthHead 0.1−25mm, Tail 0.1−70mm
Blade MaterialHigh-Speed SteelMiddle Strip Segments16 segments (Customizable)
Power780WAdditional FunctionsAutomatic wire feeding/discharging, Timed start, Jog adjustment
Stripping PrecisionSilent hybrid stepping motor 0.01mmProductivity50/100/500/1000mm (4550/4300/3000/2000 pieces/hour)
