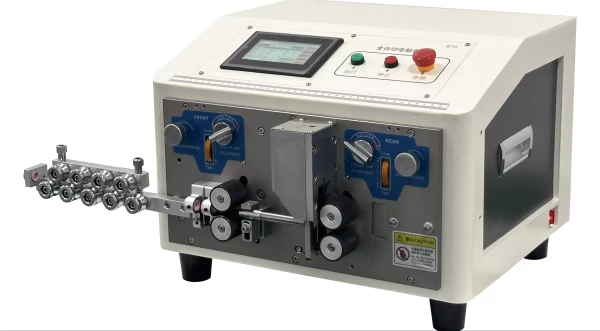

this is automatic wire cutting stripping machine which is specialized for max 16sqmm wire.

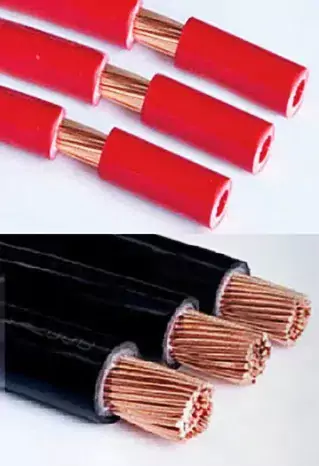

this is 10 square mm wire processed by automatic wire stripping machine.
fy-816-automatic-wire-cutting-stripping-machine
wire

Automatic 16SQMM Wire Cutting Stripping Machine

this is automatic wire cutting stripping machine specialized for heavy duty cable whose diameter upto 16mm. Heavy-Duty Automatic Wire Cutting Stripping Machine
this is automatic wire stripping machine which is specialized for awg30-12 wire. Automatic AWG30-12 Wire Cutting Stripping Machine

Upgrade your production with the FY-816 Fully Automatic Wire Stripping Machine. Achieve exceptional stripping accuracy of 0.01mm with the silent hybrid stepper motor. It supports a wide range of stripping lengths: Head 0.1−250mm and Tail 0.1−70mm. Boost your capacity with speeds up to 1800 pieces/hour (for 50mm wires). Featuring a 4.3-inch touch screen and one-touch error correction for precision and efficiency.

Category: Tag:

Features

1.) Self-developed single-chip motion control board
2.) Full-touch 4.3-inch LCD display
3.) Low-noise hybrid subdivision driver
4.) One-touch correction for wire length error
5.) Unique appearance with sleek, precise design

Technical Parameters:

Parameter Specification Parameter Specification
Model FY-816 Function Wire cutting, double-end stripping, middle stripping
Power AC220V 50/60HZ Applicable Wire Core 0.1−16mm2 (AWG30#-8#)
Machine Dimensions 470mm×450mm×350mm Cutting Length 0.1mm−99999.9mm
Machine Weight 36.5kg Stripping Length Head 0.1−250mm, Tail 0.1−70mm
Blade Material Imported Tungsten Steel / High-Speed Steel Middle Stripping Segments 16 segments (Customizable)
Power 880W Additional Functions Automatic in/out feed, timed start, jogging adjustment
Stripping Accuracy Silent hybrid stepper motor 0.01mm Capacity 50/100/500/1000mm (1800/1700/1400/1120 pieces per hour)
