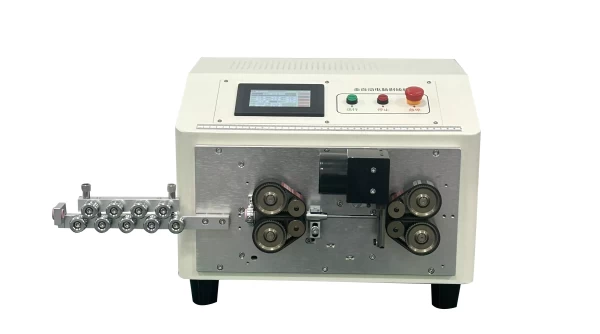

Automatic 6SQMM Wire Cutting Stripping Machine
Upgrade your production with the FY-806L Automatic Computerized Wire Stripping Machine. Achieve exceptional accuracy with a stripping precision of 0.01mm. This high-efficiency unit processes 2,000−4,500 pieces per hour and handles head/tail stripping lengths from 0.1mm to 30mm. Features include full touchscreen CNC control and caterpillar belt feeding for smooth operation across various wire types.
- Description
- Inquiry
Features Description
1. Full touchscreen CNC debugging, wire length, single-end stripping, and double-end stripping are completed with digital operation, making it simple and easy to understand.
2. Unique, rounded, precision design for the appearance, which is exquisite, compact, and easy to place.
3. Automatic wire feeding/outfeeding, timed start, and jog adjustment switch.
4. One-key correction function for wire length error.
5. This machine is suitable for electronic wires, PVC wires, silicone wires, braided wires, Teflon wires, fiberglass wires, shielded wires, etc.
Technical Parameters:
| Equipment Name | Fully Automatic Computerized Wire Stripping Machine | Wire Core Cross-Section | 0.1−6mm2 (AWG 30#−10#) |
| Equipment Model | FY-806L (Caterpillar Belt Feeding) | Cutting Length | 0.1−99999.9mm |
| Input Power | AC 220V 50/60HZ | Head Stripping Length | 0.1−30mm |
| Machine Dimensions | L470mm×W465mm×H350mm | Tail Stripping Length | 0.1−30mm |
| Machine Weight | 45kg | Auxiliary Functions | Automatic In/Out Feeding, Timed Start, Jog Adjustment |
| Total Power | 680W | Blade Material | Imported Tungsten Steel/High-Speed Steel |
| Rated Power | 400W | Capacity/Hour | 50−1000mm (2000−4500 pieces/hour) |
| Mid-Stripping Segments | 16 segments (Customizable) | Display Method | 4.3-inch Color Screen Display |
| Stripping Precision | Silent Hybrid Stepper Motor 0.01mm | Program Storage | Serial No. 00−99 (One-key Copy, One-key Read, Customizable Number and Name) |
