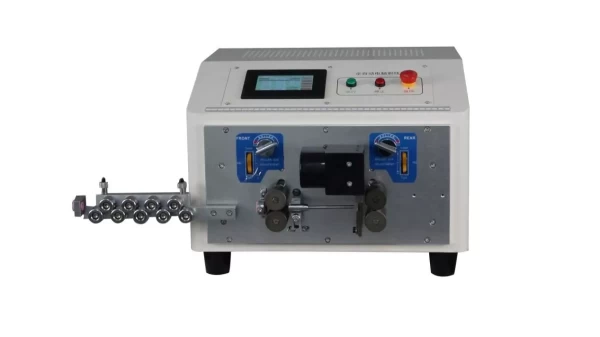

this is automatic wire stripping machine which is specialized for awg30-12 wire.

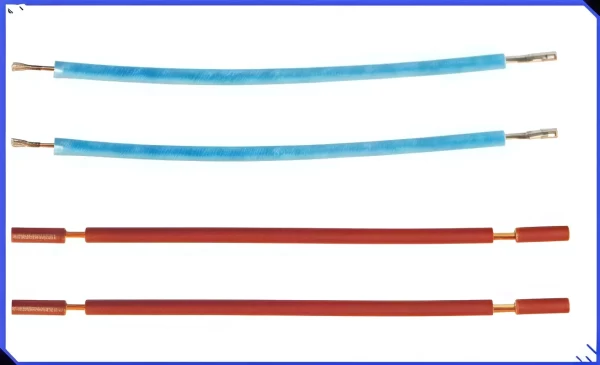

this is 6 sqmm wire processed by automatic wire stripping machine.
fy-808-automatic-6sqmm-wire-cutting-stripping-machine
6 sqmm processed wire

Automatic AWG30-12 Wire Cutting Stripping Machine

this is automatic wire cutting stripping machine which is specialized for max 16sqmm wire. Automatic 16SQMM Wire Cutting Stripping Machine

Check out the FY-808 Single-Wire Automatic Stripping Machine for high-precision, efficient wire processing. Featuring an ultra-precise 0.01mm stripping accuracy via a silent hybrid stepper motor, it ensures perfect results. It handles wire ends with a head stripping length of 0.1−25mm and a tail length up to 70mm. Boost your production with a capacity of up to 4550 pieces per hour (for 50mm wires), all controlled via a user-friendly 4.3-inch touchscreen.

Category: Tag:

Features Description

1.) Self-developed motion control board (single-chip microcomputer)
2.) Full-touch 4.3-inch LCD screen
3.) Low-noise hybrid subdivision driver
4.) Unique, sleek, and precision design

Technical Parameters:

Model FY-808 Function Wire cutting, double-end stripping, middle stripping
Power Supply AC220V50/60HZ Wire Core Range 0.1−6mm2 AWG30#-12#
Body Dimensions 470mm×450mm×350mm Cutting Length 0.1mm−99999.9mm
Body Weight 31.5kg Stripping Length Head 0.1−25mm, Tail 0.1−70mm
Blade Material High-Speed Steel Middle Stripping Segments 16 segments (customizable)
Power 680W Additional Functions Automatic wire feeding/retracting, timed start, jog adjustment
Stripping Precision Silent hybrid stepper motor 0.01mm Capacity 50/100/500/1000mm (4550/4300/3000/2000 pieces per hour)
