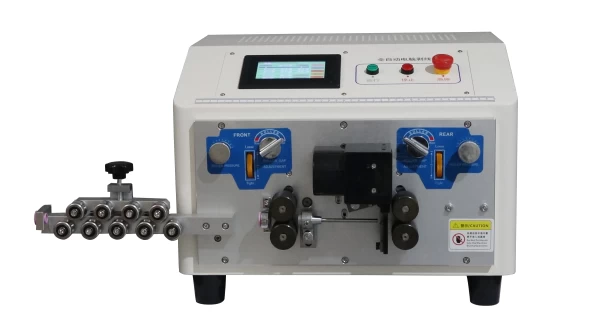

Automatic AWG30-AWG10 Wire Cutting Stripping Machine
Boost your production with the FY-805 Fully Automatic Computerized Wire Stripper! Featuring a precise 0.01mm stripping accuracy, this compact machine achieves high efficiency with a capacity of up to 4,500 wires/hour. It offers flexible stripping with a head and tail length adjustable from 0.1mm to 30mm. Control is simple with the full touch-screen CNC interface and one-key error correction.
- Description
- Inquiry
Features Description
1. Full Touch Screen CNC Debugging: Wire length, single-end stripping, and double-end stripping are all completed via digital operation, making it simple and easy to understand.
2. Unique Appearance: Sleek and precise round design, delicate and compact, convenient for placement.
3. Automatic: Features automatic feeding/outfeeding, timed startup, and inching adjustment switch.
4. Error Correction: One-key correction function for wire length error.
5. Applicable Wires: Suitable for electronic wires, PVC wires, silicone wires, braided wires, Teflon wires, fiberglass wires, shielded wires, etc.
Technical Parameters:
| Equipment Name | Fully Automatic Computerized Wire Stripping Machine | Cutting Wire Core | 0.1−6mm2 (AWG30#-10#) |
| Equipment Model | FY-805 (Single Wire Processing) | Cutting Length | 0.1−99999.9mm |
| Input Power | AC220V 50/60HZ | Stripping Head Length | 0.1−30mm |
| Machine Dimensions | L470mm× W465mm× H350mm | Stripping Tail Length | 0.1−30mm |
| Machine Weight | 31.5kg | Mid-Stripping Segments | 16 segments (Customizable) |
| Total Machine Power | 680W | Display Method | 4.3-inch color screen display |
| Rated Power | 400W | Blade Material | Tungsten Steel / High-Speed Steel |
| Production Capacity / Hour | 50−1000mm (2000−4500 wires/hour) | Stripping Accuracy | Silent hybrid stepper motor 0.01mm |
| Auxiliary Functions | Auto feed/outfeed, Timed startup, Inching adjustment | Program Storage | No. 00−99 (One-key copy, one-key read, customizable number/name) |
