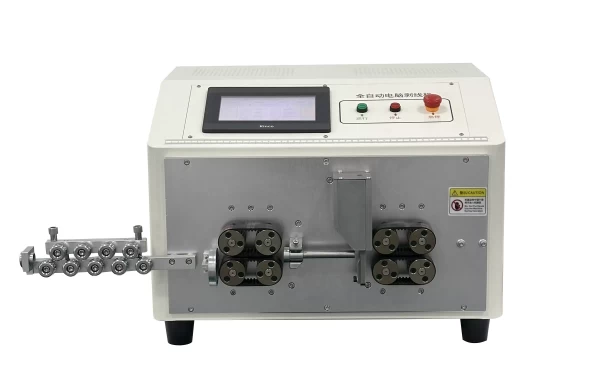

Automatic Battery Cable Cutting Stripping Machine

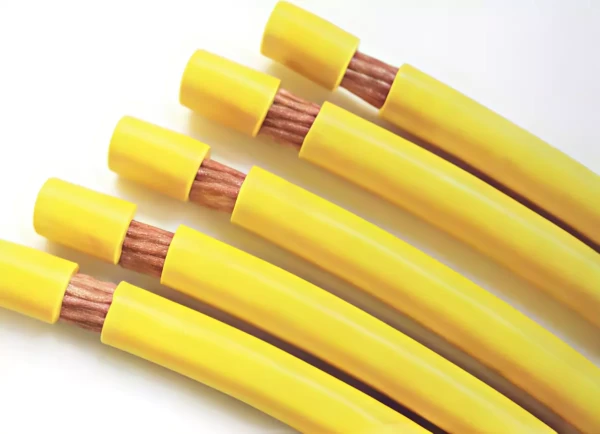

The FY-880A is a high-efficiency machine designed for precise wire processing. It handles a wide range of wires from 1.0-35mm², with stripping lengths up to 150mm at the head and 70mm at the tail. With an impressive capacity of 1200-2000 pieces per hour, its 8-wheel track feeding system prevents any marks on the cables. This makes it a reliable choice for fast and clean wire stripping.
- Description
- Inquiry
Feature:
This machine adopts 8-wheel track feeding, providing strong power and high wire feeding accuracy.
Full touch screen computer numerical control debugging, digital operation, simple and easy to understand.
Unique rounded and precise design, exquisite and compact, easy to place.
Automatic wire feeding/unfeeding, timed start, and jog adjustment switch.
One-key correction function for wire length error.
Technical Parameters:
| Equipment Name | Automatic Battery Cable Cutting Stripping Machine | Model | FY-880A |
| Wire Core Cross-Section | 1.0 – 35mm² | Wire Diameter | 1 – 16mm |
| Input Power | AC220V 50/60Hz | Conduit Diameter | 4-6-8-10-12-14-16mm |
| Overall Dimensions | L570mm × W550mm × H410mm | Machine Weight | 58KG |
| Cutting Length | 0.01 – 99999.99mm | Head Stripping Length | 0.01 – 150mm |
| Tail Stripping Length | 0.01 – 70mm | Middle Stripping Segments | 16 segments (customizable) |
| Total Power | 1.8KW | Rated Power | 0.8KW |
| Working Air Pressure | 0.5 – 0.8MPa | Production Capacity | Approx. 1200-2000 pieces/hour |
| Feeding Speed | 40-500 meters/min | Blade Material | High-speed steel / Tungsten steel |
| Conduit Swing | Electric | Stripping Accuracy | 0.01mm (Silent Hybrid Stepper Motor) |
| Feeding Method | 8-wheel track feeding | Pressure Adjustment | Two-way lead screw computerized pressure adjustment |
| Detection Functions | Wire shortage detection | Program Storage | Programs 00-99 |
| Equipment Functions | Wire cutting, single-end stripping, dual-end stripping | Transmission Structure | Precision two-way lead screw, guide sleeve, guide column gear rack |
| Auxiliary Functions | Automatic wire feed-in and feed-out, timed start, jog adjustment | Display Type | 7-inch full-color touch screen |
