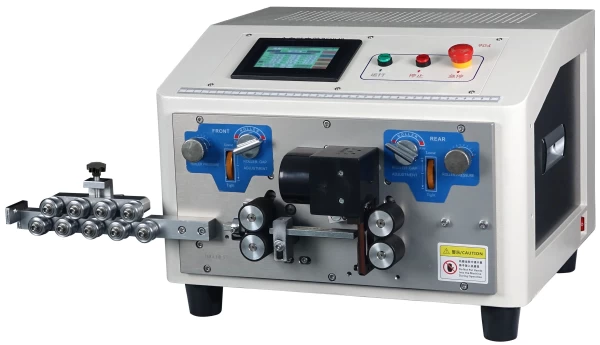

Automatic Flat Sheathed Cable Cutting Stripping Machine
Designed for efficient simultaneous stripping of 2/3/4-core flat cables, this machine enhances productivity with an output of 600–1000 pieces per hour. It offers precise stripping lengths: 0.01–100mm (outer sheath) and 0.01–30mm (inner cores). User-friendly touchscreen controls ensure easy operation, while its compact design saves space. Ideal for processing fine wires gently and accurately.
- Description
- Inquiry
Features

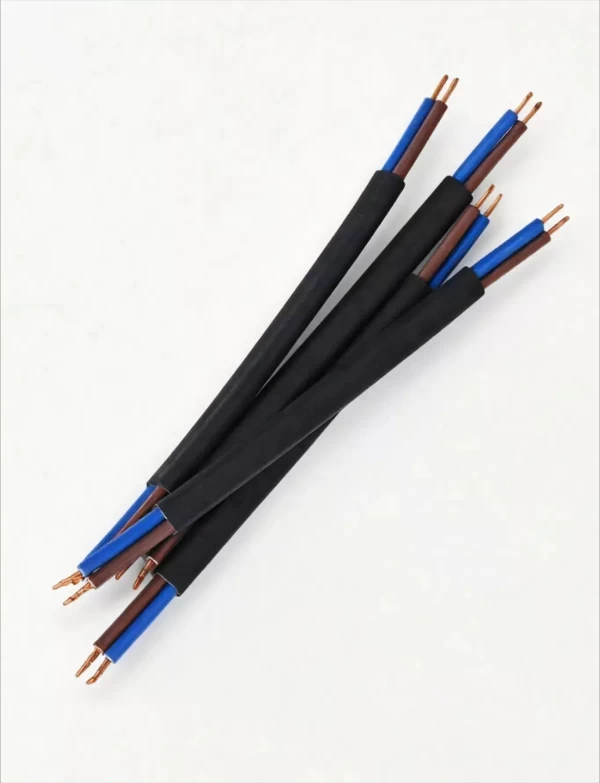

- This machine is specially designed for the simultaneous stripping of the inner and outer layers of 2, 3, and 4-core flat sheathed cables, greatly improving efficiency.
- The full touchscreen CNC control allows for simple, digital operation.
- The unique, sleek, and compact design makes it easy to place.
Product Specifications
| Equipment Name | Automatic Flat Sheathed Cable Cutting Stripping Machine | Equipment Model | FY-904 |
| Strippable Core | 20.3mm² – 21.5mm² | Cutting Length | 0.01 – 999999.99mm |
| Input Power | AC220V 50/60HZ | Dimensions | L470mmW465mmH350mm |
| Lead End Stripping | Outer layer: 0.01-100mm | Tail End Stripping | Outer layer: 0.01-70mm |
| Lead End Stripping | Core: 0.01-30mm | Tail End Stripping | Core: 0.01-30mm |
| Machine Weight | 31.5kg | Total Power | 680W |
| Rated Power | 400W | Working Pressure | 0.5-0.8MPa |
| Production Capacity | 600-1000 pcs/hour | Blade Material | High-speed steel |
| Stripping Accuracy | Silent hybrid stepper motor: 0.01mm | Detection Function | Wire shortage detection |
| Conduit Swing | Electromagnet | Program Storage | 00-99 |
| Display Method | 4.3-inch color screen | Auxiliary Functions | Automatic feeding/discharging, timed start, jogging adjustment |
