Automatic High-Temp Wire Stripping Machine

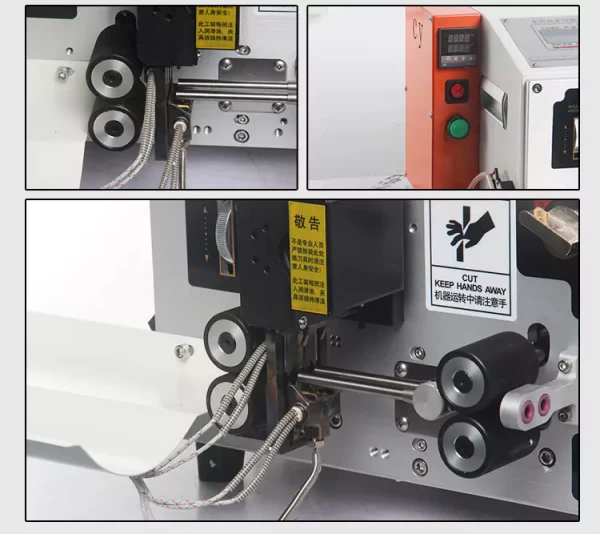

The tool holder of automatic high-temp wire stripping machine is specially treated and its heating temperature can reach 400 centigrade, can be touched by hand. The adopted import heating tube, which its temperature can be up to 450 centigrade, works normally. The heating gasket is made of titanium alloy, which is free of rust, corrosion and oxidation, so as to solve the problem of blades replacement.
- Description
- Inquiry
Description:
Introducing the advanced HWN-220 (Thermal) Automatic High-Temperature Wire Stripping Machine, engineered for exceptional performance and versatility. This robust machine features a specially treated tool holder capable of reaching a safe-to-touch operating temperature of up to 400°C. At its core, an imported heating tube, with a maximum temperature rating of 450°C, ensures reliable and consistent thermal stripping. A key innovation lies in the titanium alloy heating gasket, which eliminates rust, corrosion, and oxidation, significantly simplifying and speeding up blade replacement.

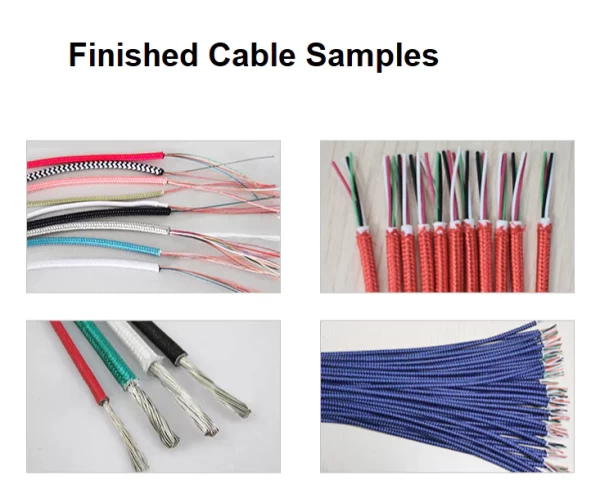

This machine boasts broad applicability, effortlessly processing a diverse range of wires, including braided OD5.5 cotton, cloth thread, leather braided wire, and TPE outer sheath wire. Notably, its design overcomes limitations associated with wire diameter, stripping length, and cutting length, offering unparalleled flexibility in your wire processing tasks.
| Parameter | Value |
| Product Name | Automatic High-Temp Wire Stripping Machine |
| Model | HWN-220 (Thermal) |
| Dimensions | 450 x 450 x 360 mm |
| Weight | 36 kg |
| Display Language | Chinese / English |
| Power Supply | AC220V / 50Hz |
| Power Consumption | 420W |
| Cutting Length | 1.0 mm – 999 mm |
| Cutting Tolerance | Modifiable |
| Front Stripping Length | 1 – 35 mm |
| Rear Stripping Length | 1 – 50 mm (material dependent) |
| Applicable Wire Diameter | 1.5 mm – 6 mm |
| Output | 1800 – 2000 pieces/hour (per meter) |
| Tool Material | Tungsten Steel |
| Stripping Speed | Faster |
| Wire Diameter Adjustment | Adjustable |
| Stripping Quality | Excellent |
| High Precision Decimal Point | Yes |
| Driving Mode | Four-wheel Simultaneous Drive |
| Stripping Pressure Adjustment | Adjustable |
| Speed Adjustment | 0 – 1 |
