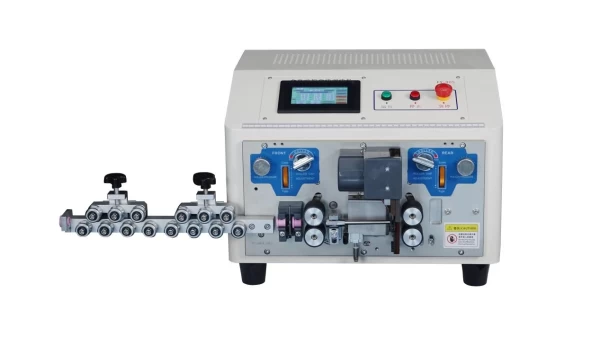

Automatic Multi-core Cable Cutting Stripping Machine
The FY-905 is a precise and efficient solution for multi-core sheathed cables. Featuring a quiet hybrid stepper motor, it delivers exceptional stripping precision of 0.01mm. It processes both inner and outer sheaths simultaneously, with a generous lead stripping length up to 250mm and tail stripping up to 70mm. Boost your production with a high capacity of up to 1300 pieces per hour (for 100mm wires). The unit includes a 4.3-inch touch screen and one-key error correction for easy operation.
- Description
- Inquiry
Feature:
Single-chip microcomputer self-developed motion control board
Full-touch 4.3-inch LCD screen
Low-noise hybrid subdivision driver
One-key correction for wire length error
Unique smooth and precise exterior design

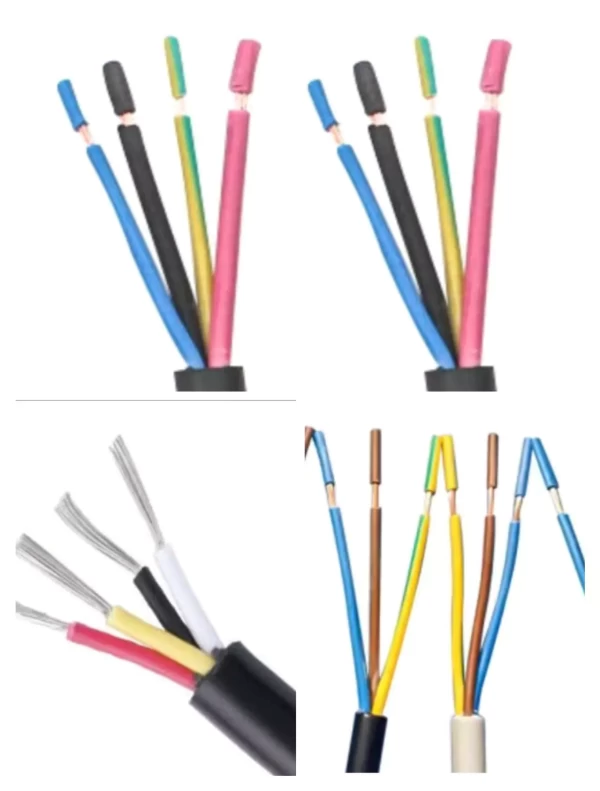

Round sheathed cable: cutting, inner and outer stripping of both ends completed in one step
Technical Parameters:
| Model | FY-905 | Cutting Outer Diameter | 1−6mm |
| Power Supply | AC220V 50/60HZ | Number of Cores | 2 cores/3 cores/4 cores/5 cores |
| Machine Dimensions | 470mm*450mm*350mm | Cutting Length | 0.1-99999.9mm |
| Machine Weight | 36.5kg | Outer Sheath Stripping Length | Head 0.1-250mm, Tail 0.1-70mm |
| Blade Material | Imported Tungsten Steel / High-Speed Steel | Inner Core Stripping Length | Head 0.1-30mm, Tail 3-30mm |
| Stripping Precision | Silent Hybrid Stepper Motor 0.01mm | Middle Strip Segments | Customizable |
| Rated Power | 700W | Additional Functions | Automatic feeding/output, timed start, jogging adjustment |
| Capacity (100mm/500mm/1000mm) | 1300 pcs/1100 pcs/900 pcs per hour | Optional Accessories | Automatic wire feeder, gripper, long wire conveyor belt |
