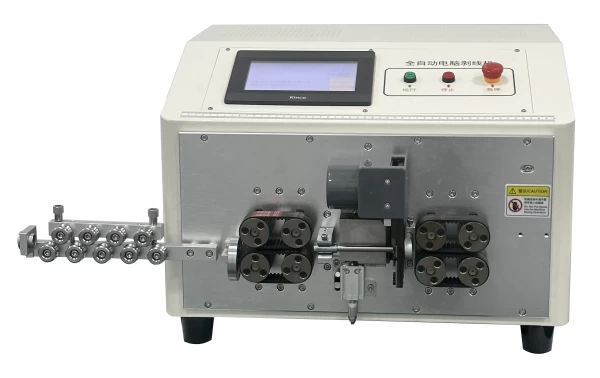

Automatic Multicore Cable Cutting Sheath & Cores Stripping Machine
Stop wasting time on manual processing. FY-880C performs one-step cutting and simultaneous stripping of a round jacketed cable’s outer and inner insulation, up to 10mm.ensuring precise, consistent results.
- Description
- Inquiry
Product Features
- Self-developed motion control board with a single-chip microcontroller
- 7-inch full-touch LCD screen
- Low-noise hybrid subdivision driver
- One-click correction for wire length errors
- Belt-type wire feeding to prevent surface marks
- Unique, sleek, and precise design
- Equipped with an automatic wire gripping manipulator
- One-step cutting and stripping of round jacketed cables with inner and outer stripping on both ends
| Parameter | Value | Parameter | Value |
| Model | FY-880C | Cutting Outer Diameter | 2mm-10mm |
| Power Supply | AC220V-50/60HZ | Cutting Cores | 2-8 cores |
| Dimensions | L570mmW550mmH410mm | Cutting Length | 0.1-99999.9mm |
| Weight | 53KG | Outer Stripping Length | 0.01-200mm (Head), 0.01-70mm (Tail) |
| Blade Material | Imported Tungsten Steel/High-Speed Steel | Inner Stripping Length | 0.01-20mm (Head), 0.01-20mm (Tail) |
| Stripping Accuracy | Silent hybrid stepper motor 0.01mm | Middle Stripping Segments | Customizable |
| Rated Power | 1500W | Additional Functions | Automatic wire feeding/exiting, timed start, jogging adjustment |
| Capacity | Approx. 600-1000 pieces | Optional Attachments | Automatic wire feeder, long wire conveyor belt |
