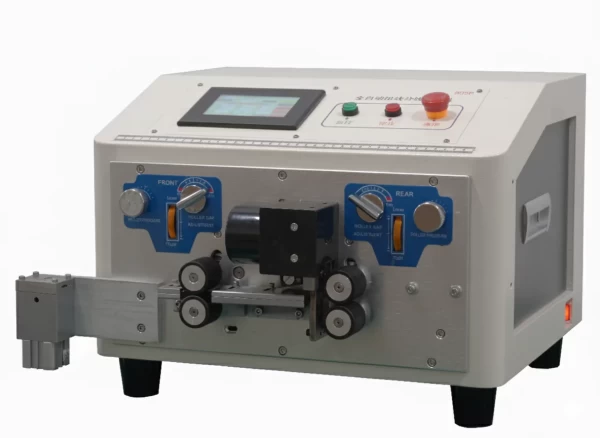

Automatic Ribbon Cable Splitting Cutting Stripping Machine

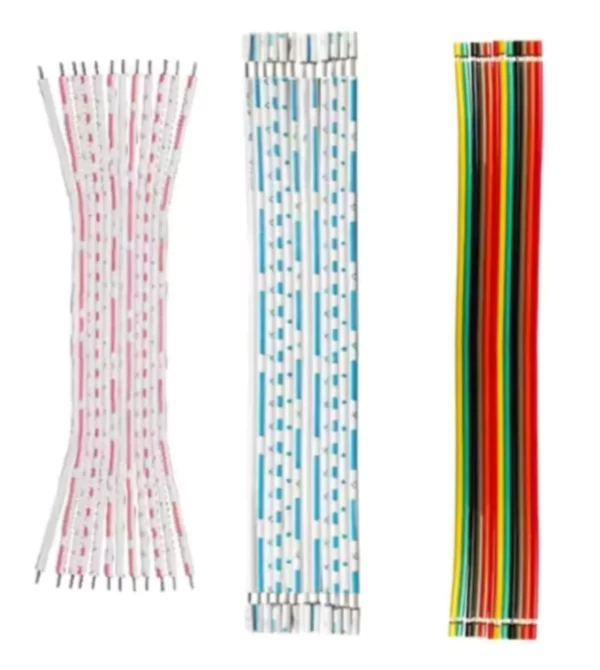

Equipped with a user-friendly touch screen, the FY-805P provides exceptional control over stripping lengths (0.01-30mm). Its precision 0.01mm stripping and burr-free splitting ensure high-quality results for up to 12-core ribbon cables.
- Description
- Inquiry
Features:
Full touch screen computer numerical control debugging, allowing for digital operation of wire length, single-end stripping, double-end stripping, single-end splitting, double-end splitting, single-end drop, and double-end drop. The interface is simple and easy to understand.
Utility knife blade scoring type splitting, which results in smoother splitting without burrs.
A cylinder and roller are designed to pull the wire for splitting, allowing for unrestricted and easy adjustment of the splitting length.
The splitting structure is independently framed, making it simple to disassemble and assemble.
Technical Parameters:
| Equipment Name | Automatic Ribbon Cable Splitting Cutting Stripping Machine |
| Wire Core Size | 0.1-0.5 mm² (12 cores) |
| Model No. | FY-805P |
| Cutting Length | 0.1-99999.9 mm |
| Power Supply | AC220V 50/60Hz |
| Stripping Length (Front) | 0.01-30 mm |
| Dimensions | L520 mm x W465 mm x H350 mm |
| Stripping Length (Back) | 0.01-30 mm |
| Weight | 40 kg |
| Splitting Length | Arbitrary adjustment |
| Total Power | 880 W |
| Display | 4.3-inch color screen |
| Rated Power | 400 W |
| Blade Material | Tungsten steel / High-speed steel |
| Capacity (per hour) | approx. 800-1500 pcs |
| Stripping Precision | Silent hybrid stepper motor 0.01 mm |
| Auxiliary Functions | Automatic wire feeding/unloading, timed start, jog adjustment |
| Program Storage | No. 00-99 (one-key copy, one-key read, custom name) |
