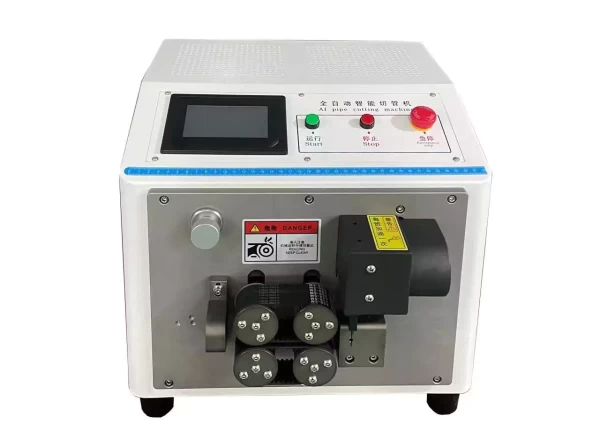

this is automatic tubing cutter specialized for cutting semi-rigid tubes.

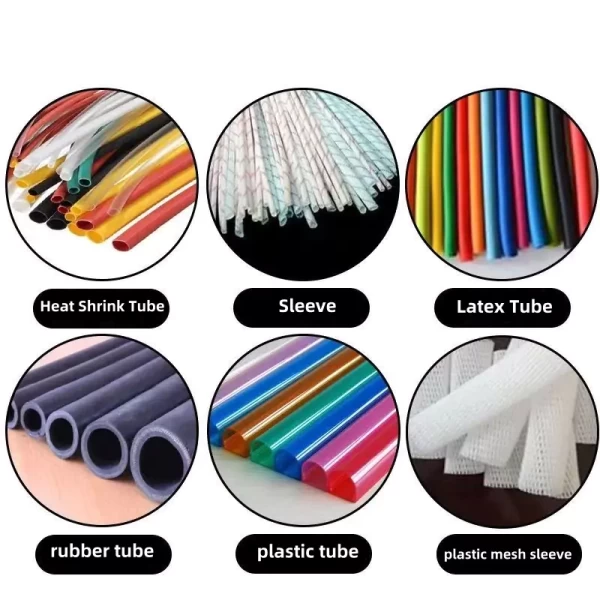

there are plastic tubings such as heat shrink tube, rubber tube and so on.
automatic-semi-rigid-tubing-cutter
plastic-tubings

Automatic Semi-Rigid Tubing Cutter

this is automatic tubing cutter which is used in cutting flex and thin materials. HZX-100 Automated Medical Tubing Cutter
this is an automatic rigid tube cutting machine specialized for cutting PPR hot water pipes, PPR fusion pipes, PVC conduit, PVC rigid pipes, PVC water supply pipes. Automatic Rigid PVC Tube Cutting Machine

The Automatic Semi-Rigid Tubing Cutter utilizes the latest 32-bit intelligent control system with a bilingual Chinese and English touch screen interface. It can store hundreds of pieces of information for quick recall, making it highly efficient and convenient. This versatile machine is suitable for cutting heat shrink tubes, PVC pipes, nylon woven tapes, rubber tubes, and more. It offers high efficiency and excellent practicality with adjustable settings. Key features include a 4-wheel hybrid synchronous drive, imported tungsten steel/high-speed steel blade, automatic wire feeding and exiting, and a cutting capacity of 2000-20000 pieces per hour.

Category: Tag:

This machine uses the latest 32-bit intelligent control system, with a bilingual Chinese and English touch screen interface. It can store hundreds of pieces of information for quick recall, making it highly efficient and convenient. Suitable for heat shrink tubes, PVC pipes, nylon woven tapes, rubber tubes, and various other cutting applications. This multi-purpose cutting machine offers high efficiency and excellent practicality with adjustable settings.

Product Description Automatic Semi-Rigid Tubing Cutter
Model JT-516
Dimensions Length 400mm × Height 700mm × Width 350mm
Weight 32kg
Display 4.3-inch touch screen
Power Supply AC175V-250V, 50/60HZ
Power 120W-220W
Cutting Length 0.1-99999.9mm
Cutting Diameter 0.1-16mm
Cutting Tolerance Within 0.002×Lmm ※L
Blade Material Imported tungsten steel/high-speed steel
Drive Mode 4-wheel hybrid synchronous drive
Hourly Cutting Capacity 2000-20000 pieces
Wire Pressure Adjustment Available
Pulse Equivalent No error within 5 meters
Total Quantity 999999
Batch Quantity 99999
Blade Motor Precision Per Step 0.03mm
In/Out Wire Motor Precision Silent hybrid stepping motor per step 0.1mm
Additional Features Automatic wire feeding, automatic wire exiting, timed start

<p>

</p>

Additional information

Weight 32 kg
Dimensions 40 × 35 × 70 cm
