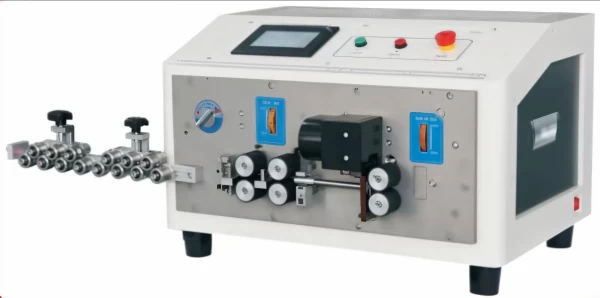

Automatic Sheathed Cable Cutting Sheath and Cores Stripping Machine
Engineered for efficiency, the FY-906 is an automatic cable stripping machine featuring a user-friendly touch screen and a six-wheel feeding system for precise processing. It accurately cuts and strips a variety of multi-core cables up to 10mm in diameter, with a production rate of up to 2500 pieces per hour. Its 0.01mm stripping accuracy ensures top-tier results.
- Description
- Inquiry

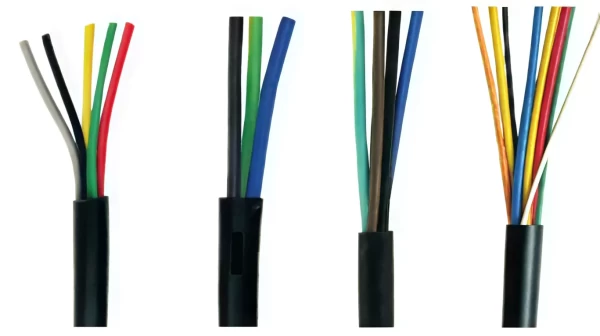

This machine is designed for cutting the total length and stripping the outer jacket at one end or both ends of multi-core round sheathed cables such as power plug wires, sensor sheathed wires, and data cables.
Full touch screen computer numerical control debugging, digital operation, simple and easy to understand.
Adopts 6 wheels for simultaneous wire feeding, making the wire feeding length and stripping length more precise and effective.
This model can strip both the outer jacket and the inner cores of flat sheathed cables simultaneously. It can also strip the outer jacket of round sheathed cables. If you need to strip both the outer jacket and inner cores of a round sheathed cable at the same time, please choose our FY-880C Automatic Multicore Cable Cutting Sheath & Cores Stripping Machine.
Technical Parameters
| Parameter Name | Value |
| Equipment Model | FY-906 |
| Input Power | AC220V 50/60HZ |
| Machine Dimensions | L560xW465xH350mm |
| Machine Weight | 40kg |
| Total Power | 880W |
| Rated Power | 400W |
| Working Air Pressure | 0.5-0.8MPa |
| Appropriate Cable Diameter | no more than 10mm |
| Cutting Length | 0.01-99999.99mm |
| Head Stripping Length | 0.01-100.00mm |
| Tail Stripping Length | 0.01-70.00mm |
| Blade Material | Imported high-speed steel |
| Stripping Accuracy | Silent hybrid stepping motor 0.01mm |
| Productivity/Hour | Approx. 1500-2500 pieces |
| Program Storage | Serial number 00-99 |
| Auxiliary Functions | Automatic wire feeding/unfeeding, timed start, jog adjustment |
| Display Method | 4.3-inch color screen display |
