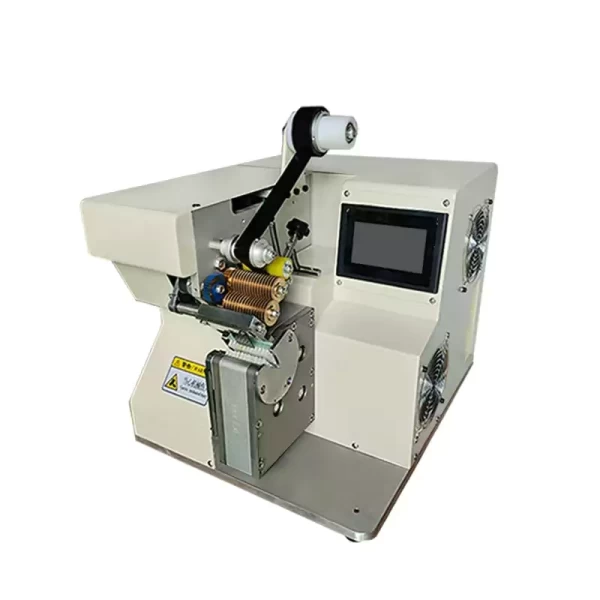

Automatic Tape Cutting Wire Harness Wrapping Machine
This precision-engineered wrapping machine is designed for automotive, motorcycle, and aviation cable applications, providing secure marking, fixation, and insulation through tape wrapping. Ideal for diverse wire types and adhesive tapes, it features adjustable parameters, user-friendly operation, and high-speed performance (up to 1,200 units/hour).
- Description
- Inquiry
Key Features:
1.) Broad Compatibility: Works with non-liner tapes (cloth, PVC, etc.) without backing paper.
2.) Flawless Wrapping: Ensures smooth, wrinkle-free application with 50% overlap precision for cloth tapes.
3.) Spot-Wrapping Mode: Targets specific sections for localized reinforcement.
4.) Smart Controls: Programmable cycles, speed, and real-time production tracking.
5.) Quick-Change Blades: Minimizes downtime with tool-free blade replacement.
6.) A compact, durable solution for industrial-grade efficiency.
Technical Parameters:
| Feature | Specification |
| Function | 1: Automatic Cutting and Wrapping |
| 2: Adjustable Tape Length and Wrapping Turns | |
| ProcessingCapacity | 1200 pcs/Hour |
| Processing Size | Diameter 1-8mm |
| Tape Width | 5-45mm |
| Tape Overlap Accuracy | Deviation ±0.5mm |
| Control Method | Full Digital Control |
| Power Supply | Single-phase/Three-phase AC220V |
| Operating Temperature | 5℃~40℃ Ambient Temperature |
| Operating Humidity | 30%~80%RH, Non-condensing |
| Warranty Period | 2000 hours or 1 year (excluding wearing parts) |
| Equipment Dimensions | L370mm × W495mm × H385mm |
| Equipment Weight | Approximately 35kg |
| Optional Accessories | Paper Collector / Auxiliary Feeding Arm |
