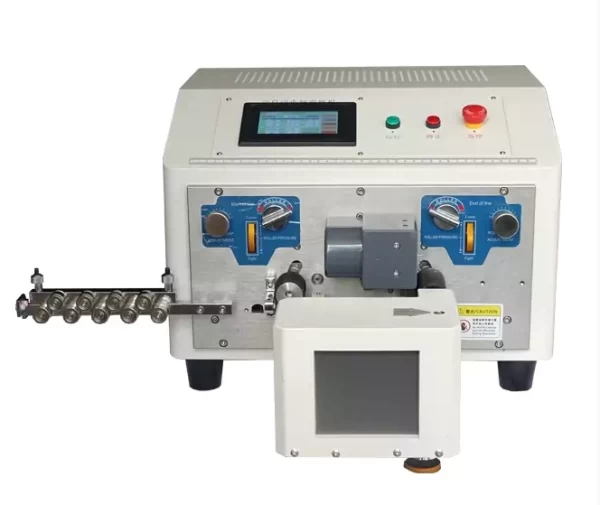

Automatic Wire Cut Strip Twisting Machine
Engineered for precision with small electronic wires, the FY-806N is a fully automatic wire processing machine. It features a user-friendly, full touchscreen for simple digital operation and one-key length correction. Its compact design saves space while a silent hybrid stepper motor ensures high accuracy in cutting, stripping, and twisting, with a remarkable output of up to 4500 pieces per hour.
- Description
- Inquiry
Specifications of Automatic Wire Cutting Stripping Twisting Machine
Features Description:
※ This machine is designed for small electronic wires and PVC plastic wires, performing wire cutting, single-end stripping and twisting, double-end stripping and twisting, and other operations.
※ Full touchscreen computer numerical control debugging, digital operation, simple and easy to understand.
※ Unique rounded and precise design, exquisite and compact, easy to place.
※ Automatic wire feeding/outfeeding, timed start, jog adjustment switch.
※ One-key correction function for wire length error.
Technical Parameters
| Parameter Name | Value |
| Equipment Name | Fully Automatic Computer Wire Stripping Machine (Single Wire Processing) |
| Equipment Model | FY-806N |
| Input Power | AC220V 50/60HZ |
| Machine Dimensions | L470xW700xH350mm |
| Machine Weight | 45kg |
| Total Power | 880W |
| Rated Power | 400W |
| Wire Core Cross-section | 0.2-1.0 sqmm |
| Cutting Length | 0.01-99999.99mm |
| Stripping Length (Head) | 0.01-30.00mm |
| Stripping Length (Tail) | 0.01-30.00mm |
| Middle Stripping Sections | 16 sections (customizable) |
| Blade Material | Tungsten Steel |
| Stripping Accuracy | Silent Hybrid Stepper Motor 0.01mm |
| Capacity/Hour | 50-1000mm (Approximately 2000-4500 pcs/hour) |
| Program Storage | Serial No. 00-99 |
| Auxiliary Functions | Automatic Wire Feeding/Outfeeding, Timed Start, Jog Adjustment |
| Display Method | 4.3-inch Color Screen |
