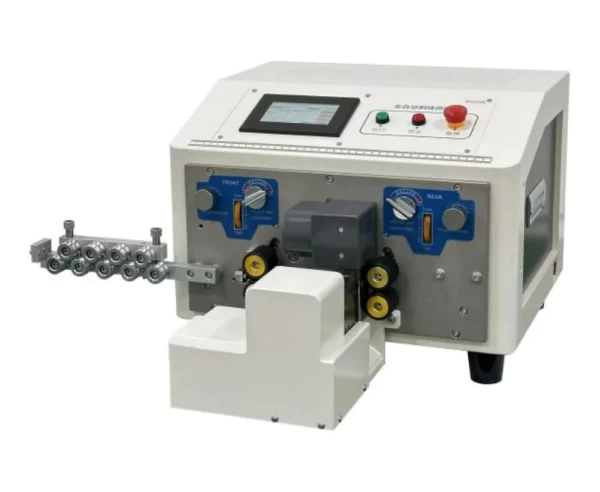

Automatic Wire Cutting Stripping and Twisting Machine
Engineered for efficiency and precision, the FY-806CN is an automatic wire cutting, stripping, and twisting machine. Its unique rubbing strip method ensures tighter twists on a wide range of wires (0.1-4.0 sqmm). The user-friendly full touchscreen and CNC digital controls simplify operation, while features like one-key length correction and automatic feeding guarantee high productivity and accuracy.
- Description
- Inquiry
Features Description:
※ This machine is designed with a rubbing strip twisting method, making the wire twist tighter and suitable for a wider range of wires.
※ Full touch screen computer numerical control debugging, digital operation, simple and easy to understand.
※ Unique rounded and precise design, exquisite and compact, easy to place.
※ Automatic wire feeding/unfeeding, timed start, and jog adjustment switch.
※ One-key correction function for wire length error.
※ This model machine can be customized for cutting stripping twisting splitting speaker wire.
Technical Parameters
| Parameter Name | Value |
| Equipment Name | Automatic Wire Cutting Stripping and Twisting Machine (Thick Wire Type) |
| Equipment Model | FY-806CN |
| Input Power | AC 220V 50/60HZ (110V customizable) |
| Machine Dimensions | L470xW780xH350mm |
| Machine Weight | 60kg |
| Total Power | 880W |
| Rated Power | 400W |
| Wire Core Size | 0.1-4.0 square mm (AWG28#-12#) |
| Cutting Length | 0.01-99999.99 mm |
| Stripping Length (Head) | 0.01-30.00 mm |
| Stripping Length (Tail) | 0.01-30.00 mm |
| Middle Stripping Sections | 16 sections (customizable) |
| Blade Material | Tungsten steel |
| Stripping Accuracy | Silent hybrid stepping motor 0.01mm |
| Productivity/Hour | Approximately 2000-4500 pieces |
| Program Storage | Serial number 00-99 |
| Auxiliary Functions | Automatic wire feeding/unfeeding, timed start, jog adjustment |
| Display Method | 4.3-inch color screen display |
