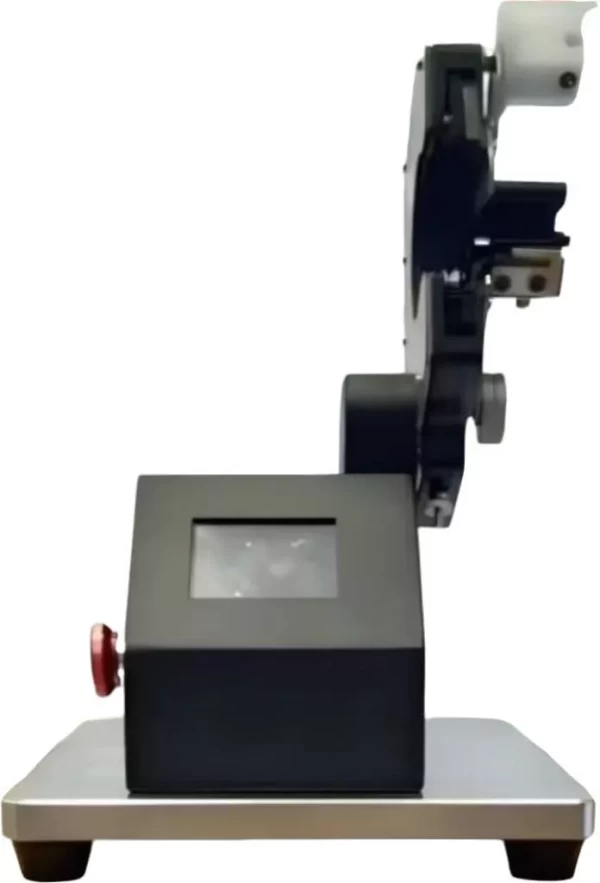

this is wire harness taping machine which is used in wireharness wrapping industries.

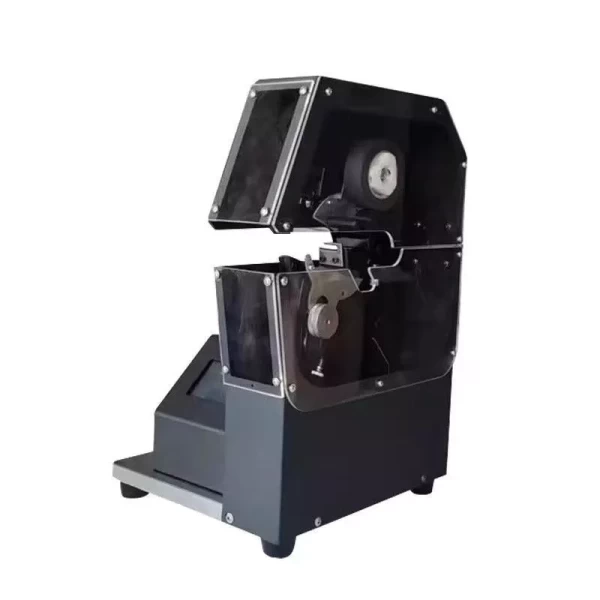

this is wire harness taping machine with protector cover which is used in wireharness wrapping industries.
this is tape wrapped wireharness by wireharness taping machine.
wireharness-taping-machine
desktop-wire-harness-taping-machine
taped-wireharness

Desktop Wireharness Tape Wrapping Machine

Fixed-Point Tape Wrapper Push-Pull Positioning Wireharness Tape Wrapping Machine

This desktop harness tape wrapping machine ensures stable performance and simple operation via a touchscreen. It handles various tapes like PVC and mica tape, supporting both full-wrap (with adjustable overlap) and point-wrap (with settable turns). Wraps tightly, saving time and effort.

Category: Tag:

Desktop Wireharness Tape Wrapping Machine Performance Parameters

Power Supply220V/50Hz (Can be customized)
Power Rating200W
Equipment Weight16KG
Dimensions225×250×350mm (Without protective cover)

228×255×370mm (With protective cover)

Rotation Speed1-6 revolutions per second (Adjustable)
Applicable Wire Diameter2-20mm (Standard model)

5-40mm (Large model)

Tape Inner/Outer DiameterStandard inner diameter 38, outer diameter less than 110mm
Tape Width15-25mm
Tape MaterialPVC, adhesive cloth, adhesive tape, felt, etc.
Rotation ModeAutomatic mode and manual mode
Operation MethodTouch screen
Other FunctionsCountable, intermittent winding & continuous winding
