this is automatic wire cutting stripping machine specialized for heavy duty cable whose diameter upto 16mm.
This is 2awg heavy gauge cable processed by automatic wire stripping machine.

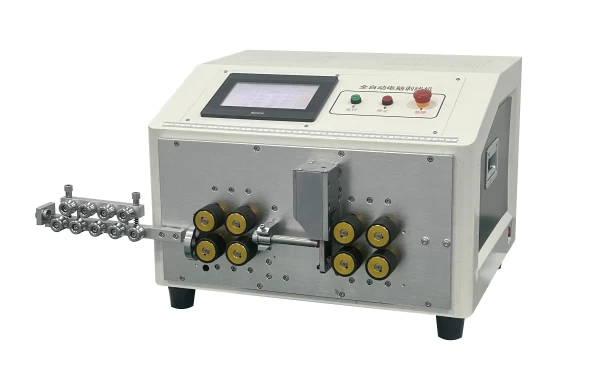

FY-880B automatic wire cutting stripping machine
2awg-cable

Heavy-Duty Automatic Wire Cutting Stripping Machine

this is automatic wire stripping machine which is specialized for processing awg30-awg10 wire. Automatic AWG30-AWG10 Wire Cutting Stripping Machine
this is automatic wire cutting stripping machine which is specialized for max 16sqmm wire. Automatic 16SQMM Wire Cutting Stripping Machine

FY-880B Heavy-Duty Automatic Wire Stripper handles wires up to 16mm with exceptional 0.01mm stripping accuracy. Achieve precise end stripping from 0.01-150mm (head) and 0.01-70mm (tail). This efficient machine delivers high productivity, reaching an impressive 1200-2000 pieces/hour. Featuring an 8-wheel feed system and full-touch control for maximum reliability.

Category: Tag:

Feature:

This machine adopts 8-wheel track feeding, providing strong power and high wire feeding accuracy.
Full touch screen computer numerical control debugging, digital operation, simple and easy to understand.
Unique rounded and precise design, exquisite and compact, easy to place.
Automatic wire feeding/unfeeding, timed start, and jog adjustment switch.
One-key correction function for wire length error.

Technical Parameters:

ModelFY-880BStripping Diameter4-16mm
Power SupplyAC220V50/60HZConduit Diameter4-6-8-10-12-14-16 (mm)
Machine DimensionsL570mm*W550mm*H410mmCutting Length0.01mm-99999.99mm
Machine Weight60kgStripping Head Length0.01mm-150.00mm
Total Power1.8KWStripping Tail Length0.01mm-70.00mm
Rated Power0.8KWMulti-Step Stripping Segments16 segments (Customizable)
Equipment FunctionsWire Cutting, Single-End Stripping, Double-End StrippingBlade MaterialHigh-Speed Steel/Tungsten Steel
Wire Feeding Method8-Wheel FeedingStripping AccuracySilent Hybrid Stepper Motor 0.01mm
Pressure AdjustmentBidirectional Screw Computer Adjusted PressureDriving MethodHybrid Closed-Loop Stepper + Hybrid Open-Loop Stepper
Detection FunctionWire Shortage DetectionCapacity/HourApprox. 1200-2000 pieces
Conduit SwingElectricFeeding Speed40-50 meters/minute
Working Air Pressure0.5-0.8MPaProgram StorageNo. 00-99
Auxiliary FunctionsAutomatic Wire Feeding/Discharge, Timed Start, Jog AdjustmentDisplay MethodFull-Touch 7-inch Color Display Screen
Transmission StructurePrecision Bidirectional Screw, Bushing Guide Post, Gear and Rack
