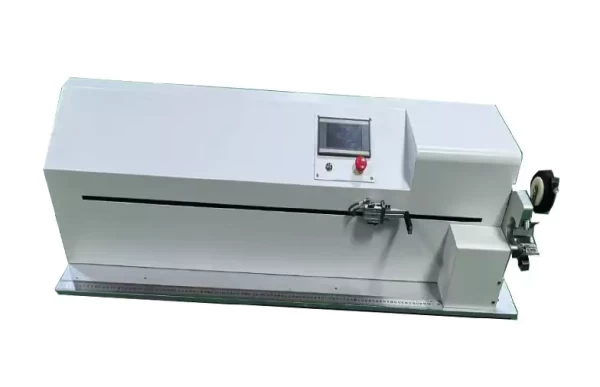

Multi-branch Wire Harness Spot Joint Tapping Machine
Need to efficiently wrap complex wire harnesses? Our multi-branch wire harness wrapping machine is your solution. With precision and speed, it automatically applies multiple layers of tape to various wire configurations. Improve insulation and protection for your products today.
- Description
- Inquiry
Technical Parameters of Multi-branch Wire Harness Wrapping Machine
| Parameter | Value |
| Voltage | AC220V/50Hz |
| Power | 1000W |
| Operation | 4.3-inch touchscreen PLC integrated (Mitsubishi) |
| Applicable wire diameter range | 2-35MM |
| Applicable tape width | Up to 30MM wide |
| Control mode | Electric + pneumatic |
| Advantages | Can be set to wrap according to length, segmented wrapping, spot wrapping, and free wrapping |
| Applicable tape | Electrical tape, acetate tape, PVC cloth-based, velvet-based, etc. |
| Stroke | Up to 1000MM |
| Theoretical output | Depends on the product, maximum spindle speed 1000R/MIN |
| Core configuration | 1 set of 750W servo motor, 1 set of 200W stepper drive, 4.3-inch touchscreen display |
| Product dimensions | 1250x310x340mm |
| Net weight | 45KG |
| Packaging | Plywood Box |
