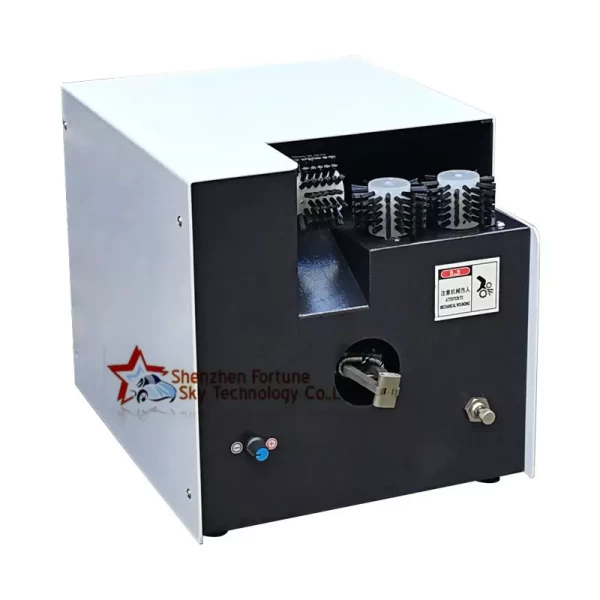

Multi-core wire shield wire brush splitter twister machine
This pneumatic electric wire twister machine adopts three brush heads to brush the sheild wire quickly and tighten knitting wires and sheild wires, can replace manual work completely.
- Description
- Inquiry
1. Comprehensive Wire Compatibility
This industrial-grade pneumatic twisting machine delivers exceptional performance across multiple wire types:
Standard knitting wires (single and multi-strand)
Shielded cables (including braided and foil types)
Multi-core conductors (up to 6mm combined diameter)
The automated system completely eliminates manual twisting labor, achieving 300% efficiency improvement over traditional methods.
2. Intelligent Pneumatic Gripper System
2.1 Automated Operation Sequence
Air Connection: Integrated quick-connect coupling for immediate operation
Self-Activating Mechanism: Gripper opens automatically upon air supply engagement
Simple Workflow:
Operator positions wire
Light foot pedal activation
Complete twist cycle in 0.8 seconds
2.2 Ergonomic Design Features
Low-force pedal operation (≤2kg pressure)
Visual status indicators
Anti-fatigue footswitch design
3. Optimized Wire Access Configuration
The exposed automatic gripper design provides:
270° unobstructed wire access
50mm maximum opening clearance
Integrated wire guides for precise positioning
Design Advantage: Enables effortless placement of even disorganized wire bundles
4. Adaptive Clamping Technology
4.1 Self-Adjusting Mechanism
Automatic diameter compensation (0.5-6mm range)
Constant pressure application (2.5±0.3 bar)
Spring-loaded jaw system
4.2 Material Preservation
Non-marring surface contact
Even pressure distribution
No conductor deformation
5. Enhanced Pneumatic System Upgrade
This third-generation twister features:
40% faster cycle time than previous models
Reduced air consumption (0.15m³/min @ 6bar)
Maintenance-free operation for 10,000 cycles
6. Rapid Operator Training System
The intuitive wire drawing device enables:
<15 minute basic competency training
Color-coded operation guides
Fault-prevention programming
Training Efficiency: New operators achieve full productivity in 1 shift
7. High-Efficiency Brush System
7.1 Triple-Brush Configuration
Primary Brush: Heavy-duty copper untangling
Secondary Brush: Precision strand alignment
Finishing Brush: Surface polishing
7.2 Shielded Wire Performance
Complete coverage in single pass
Adjustable brush pressure
Quick-change brush cartridges
Technical Specifications
Parameter Specification Tolerance
Twisting Length Range 5-60mm ±0.5mm
Power Consumption 0.02KW/H +10%
Machine Weight 10KG ±5%
Motor Power 10W –
Power Requirements AC220V 50/60Hz ±10%
Dimensions (LxWxH) 340×270×260mm ±2mm
Functional Capabilities
Brushing:
Effective shield separation
Oxide removal
Surface preparation
Strand Separation:
Precision core isolation
Non-destructive processing
Variable spacing control
Twisting:
Consistent pitch control
Programmable torque
Automatic termination
Warranty and Support
Comprehensive Coverage: 12-month full warranty
Extended Service: Lifetime technical support
Maintenance Package:
Quarterly preventive maintenance recommended
On-site service available
Priority parts replacement
This advanced wire processing solution represents the latest evolution in conductor preparation technology, combining industrial durability with operator-friendly features for maximum productivity in high-volume applications.
