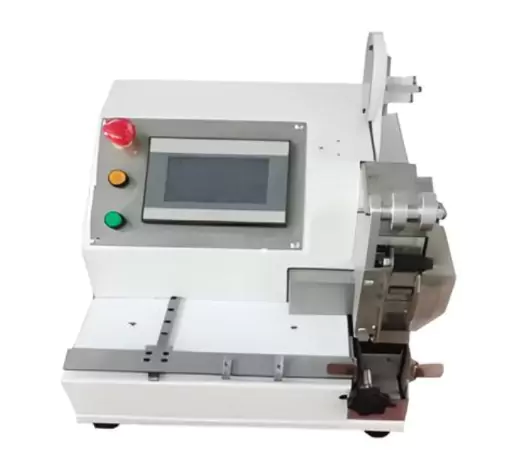

Push-Pull Positioning Wireharness Tape Wrapping Machine
The Push-Pull Fixed-Point Wrapping Tape Machine offers high-efficiency and precise wire harnessing. Featuring a user-friendly touch screen PLC, it handles 5-15MM wire diameters and tapes up to 30MM wide (including electrical, acetate, PVC, etc.). This electric unit requires no air and achieves 800-900 wraps/hour with adjustable 40-100MM tape lengths. Isolation paper rewinding is supported.
- Description
- Inquiry
Feature:
This efficient push-pull wrapping machine precisely tapes wires (5-15MM diameter) using various tapes up to 30MM wide. Its touch screen PLC ensures easy, air-free operation with a high output of 800-900 pieces/hour and adjustable tape length (40-100MM). It also handles isolation paper.
Technical Parameters:
| Attribute | Value |
| Product Name | Push-Pull Positioning Wireharness Tape Wrapping Machine |
| Model No. | HWN-870 |
| Voltage | AC220V/50Hz |
| Power | 600W |
| Operation | 4.3-inch Touch Screen PLC Integrated (Mitsubishi) |
| Applicable Wire Diameter Range | 5-15MM |
| Applicable Tape Width | Within 30MM Width |
| Control Method | Pure Electric, No Air Source Required |

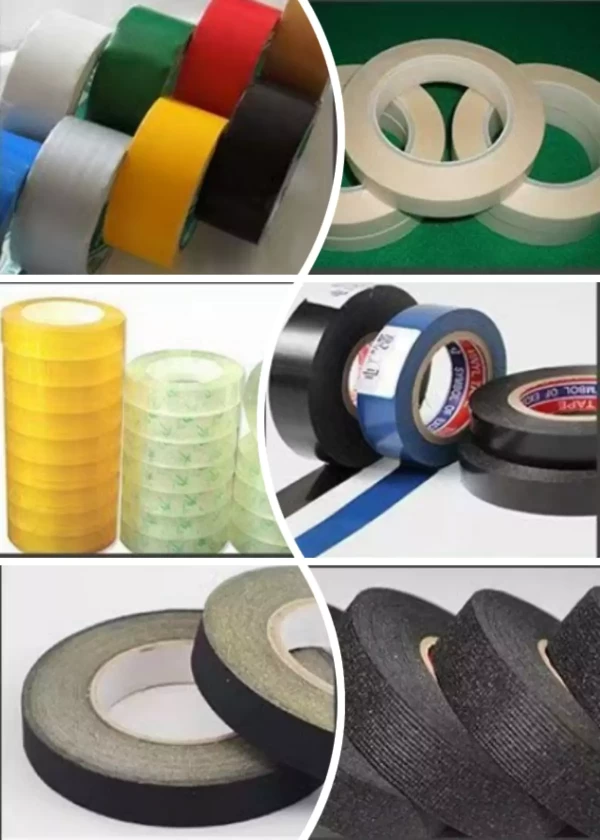

| Applicable Tapes | Electrical Tape, Acetate Cloth Tape, PVC Cloth Base, Flannelette Base, etc. |
| Tape Length Cutting Range | 40-100MM |
| Theoretical Output | 800-900 pieces/H |
| Isolation Paper Rewinding Capability | Yes |
| Product Dimensions | 440 * 310 * 370 (mm) |
| Net Weight | 33KG |
| Packaging | Wooden Case |
