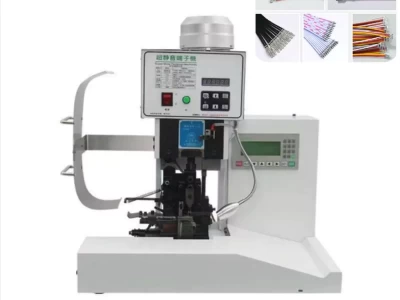

Operation Guide for Semi-Automatic Ribbon Cable Crimping Machine
Key Technical Points for Adjusting the Semi-Automatic Ribbon Cable Crimping Machine: Turn on the power switch and air valve switch. Place terminals into the terminal holder. Power on the touchscreen, confirm the wire's P number, and set the wire type, spacing, and crimping times on the touchscreen (the crimping times should match those of the terminal machine). Set the jog/continuous switch to the jog position. Loosen the wire width adjustment screw slightly, adjusting it to be slightly larger than the wire width (refer to the...
