Automatic Cable Coiling Sorting Machine

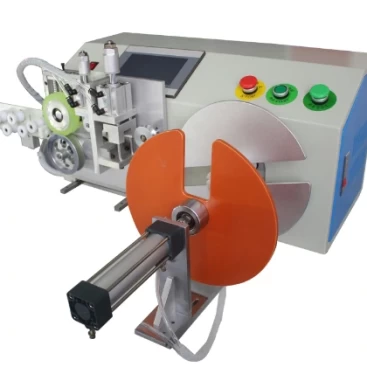

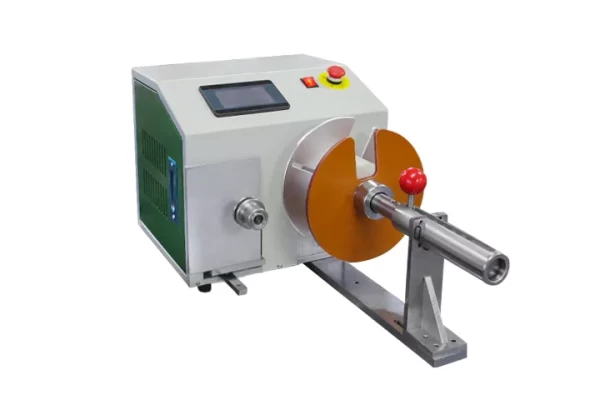

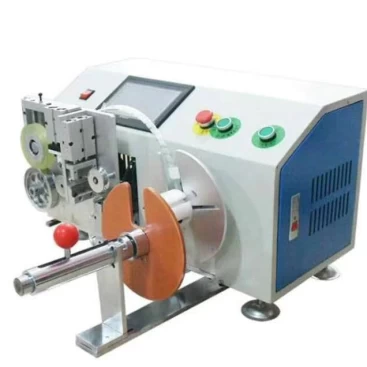

Unlock efficiency with the Automatic Cable Coiling Sorting Machine. Engineered for precision and reliability, this machine features a robust control system utilizing PLC and a touchscreen interface. Core components include a powerful 86 stepper motor for winding, Japan-made NSK sliding guide rails, and Omron sensors, ensuring exceptional durability. It handles cable diameters from 50–200 mm with an adjustable number of turns, achieving winding speeds of up to 10 revolutions/second. All critical components, including the custom-made POM wire fixture, are CNC-machined for strict accuracy, making it the ideal solution for high-quality, customized cable processing.
- Description
- Inquiry
Main Electrical Components
Winding mechanism: Driven by an 86 stepper motor.
Control system: PLC + touchscreen.
Sliding guide rail: Uses Japan-made NSK.
Custom-made rack and chassis set.
Two sets of relays, one set of Omron sensors.
Power supply transformation system.
Wire arrangement mechanism: Stepper rack linear reciprocating mechanism.
Processing Fixture Section
Key mounting plates are processed using a CNC machining center.
Processing of components strictly follows engineering design: milling, grinding, turning, wire cutting, heat treatment, fitting, and electrical installation and debugging.

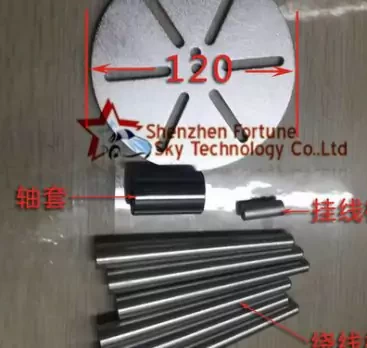

Wire fixture (shaft): Made of Acetal (POM) material, dimensions provided by the client. The machine includes one winding shaft.
Technical Parameters:
| Parameter Name | Parameter Value | Notes / Description |
| Product Name | Automatic Cable Coiling Sorting Machine | |
| Winding Inner Diameter Range | 50–200 mm | |
| Number of Winding Turns | Adjustable | |
| Maximum Turntable Diameter | 280 mm | |
| Baffle Mechanism | Pneumatic or manual push modes | Optional |
| Fixture and Turntable | Customized According to Product Requirements | |
| Positioning Travel | Standard 100 mm | |
| Input Voltage | AC 220V, 50 Hz/60 Hz | Customizable for special voltages |
| Rated Power | <200 W | |
| Load Capacity | 1 kg | |
| Dimensions | L400×W800×H340 mm | (Length × Width × Height) |
| Standard Turntable Outer Diameter | 280 mm | |
| Optional Turntable Sizes | 220 mm / 280 mm | |
| Shaft Diameter | 50–200 mm | Finished winding must not exceed the turntable diameter |
| Shaft Length | Wire diameter × number of wires +1 mm margin | Winding Shaft Dimension Description |
| Winding Speed | 1–10 revolutions/second | |
| Weight | Approx. 35 kg |
