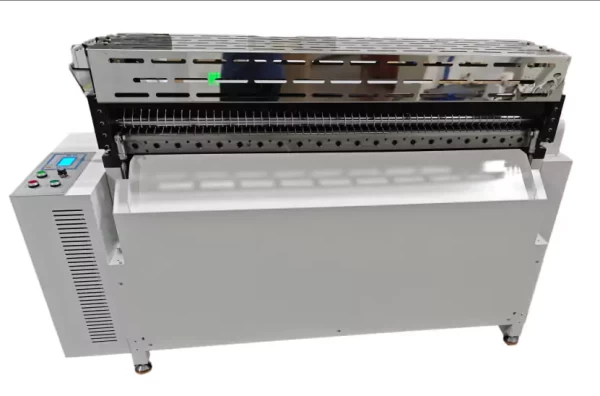

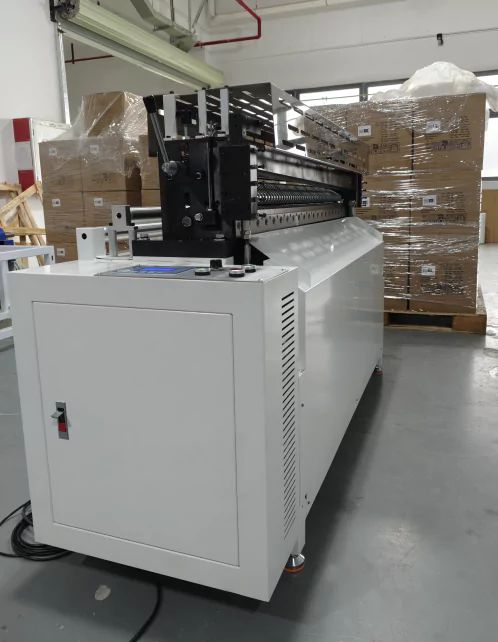

Automatic Film Roll To Sheet Slitting Cutting Machine
Optimize your workflow with the HZX-1400YT automatic cutting machine. Its advanced microcomputer control allows for precise adjustment of length, quantity, and speed. A wide 0.1-1310mm cutting width and a unique scratch-free feeding mechanism ensure high-speed, accurate slitting with minimal material loss. The intuitive design makes operation effortless.
- Description
- Inquiry
This automatic cutting machine features a microcomputer numerical control system, allowing you to easily set cutting length, quantity, and speed. An adjustable roller feeding mechanism with automatic pressure and a thimble-type design ensures fast, scratch-free material feeding. This machine is ideal for high-speed, high-precision slitting of various strip materials, minimizing loss.
With its specialized mechanical structure and unique software control, you can achieve consistently flat and precise cuts. The machine includes an independently developed motion control system and an intuitive LCD display for simple, efficient operation. It offers adjustable blade speeds, intelligent counting, and batch settings for optimal control.
Versatile and highly automated, this machine is perfect for fixed-length cutting in a wide range of industries. It is commonly used in electronics, automotive, apparel, and many other manufacturing sectors, providing reliable performance across different materials.
Technical Parameters:
| Parameter | Value |
| Model No./Product | HZX-1400 Automatic Roll To Sheet Slitting Cutting Machine |
| Power Supply | 220V/50HZ (Customized) |
| Cutting Length | 1mm—–9999.9mm |
| Cutting Width | 0 –1310mm |
| Cutting Precision | 0.1mm (depending on material) |
| Weight | Approx. 515KG |
| Blade Material | SKD11 |
| Feeding Speed | Adjustable, up to 36m per minute |
| Dimensions (LWH) | 1855x575x1120mm |
| Power | 3.2KW |
| Motor (Feeding) | Stepper Motor |
| Motor (Cutting Blade) | Geared Motor |
| Stepper Motor Driver | HZX-110D |
| Feeding Method | Upper and lower spring-type rollers |
| Slitting Mechanism | Utility knife slitting * 10 blades |
| Cutting Blade Adjust | Setting parameters in the machine. |
| Slitting Blade Adjust | After fixing the first blade, measure the width between the first and second blades with a ruler. Once the desired width is set, tighten the screws on the second blade. Repeat this method for the remaining blades. |
