Automatic Air Bubble Poly Film Cutting Machine

This machine is primarily designed for positioning and cutting rolled/sheet materials to a fixed length. It utilizes a servo/stepper motor for material feeding, with a PLC screen/integrated keypad for easy operation. It allows for precise length, quantity, and speed settings, with the ability to cut individually or perform color mark positioning cutting.

  • Description
  • Inquiry


1. High speed: It can cut 100-120 cut per minute. (50mm long)
2. Accuracy: Cut-length is accurate. Material is sent by a stepping motor.
3. Cutting type: Cutting is neat due to using a cold cutter which is durable.
4. Automatic operation: It works automatically only by setting length and quantity.
5. Automatic stopper: It stops automatically if materials run out during operation.
6. Blade type: Cold or Hot cut. Hot blade cut for nylon/polyester/braided webbing, avoid fraying.
7. Memory: Set-length, set-qty & set-speed are not erased even if power off & on.

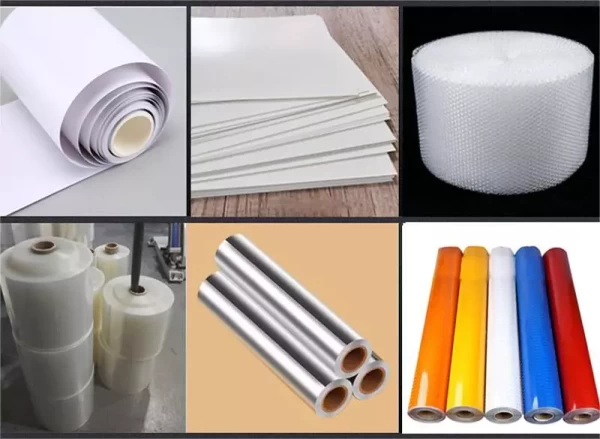

8. Application: Sleeve, rubber/plastic tube, small wire, sheet, film, etc.
9. High speed, high accuracy, designed for cutting non-adhesive materials.


Model No.HZX-400HZX-500HZX-600HZX-700HZX-800
Cutter TypeTop and Bottom Blade Cutter
Cutting width1-400mm1-500mm1-600mm1-700mm1-800mm
Cutting length1-9999mm
Cutting speed0-999
Cutting accuracy(+/-)0.1mm
Roller Spec.Dia.20-76
