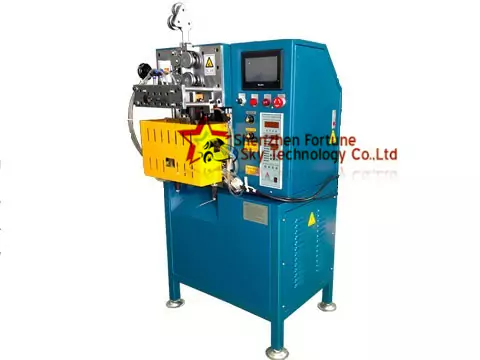

Automatic Rope Wire Cable Seal Cutting Annealing Machine

Automatic rope wire cable seal cutting annealing machine, its design is mainly aimed at problem from production and processing industries that a variety of lead-sealed wire rope,wire rope lock, sealing wire rope, blockade and so on batches of wire ropes after fusing, grinding and resolving the unstable quality of manual processing, a variety of processes, and increasingly serious labor difficulties, this fully automatic equipment can help save human labor, simplify the processing procedures, to reduce production costs and increase production capacity, multiple machines can be managed by one person at the same time.
This equipment is widely used in medical equipment, auto parts, construction safety, office furniture, bicycles, sports equipment, locks and other industries. The high-precision touch-type computer control system makes the setting and changing of the fuse conditions easy, and good fuse quality can be obtained.


  • Description
  • Inquiry

Main technical requirements and instructions

1. The wire rope of the wire rope having a diameter of 1-5mm聽which can be completed by the fuse machine. The equipment adopts the stepper聽motor 锛8mm above adopt servo motor锛 to ensure the fuse length is accurate, the melting section is conical, the largest circular surface diameter of the conical surface is smaller than the diameter of the steel wire, and the melting section is not is quick and convenient to change the fuse length by using the touch screen.

2. Size requirements for wire rope and fuse:

-The fuse material is a wire rope with no cotton inside.
-The wire rope diameter is required to be 1-5mm 锛坮equires replacement of the clamping die锛.
-The maximum wire diameter that can be blown is 5mm and the length is not limited. (If larger diameter material processing is required, it needs to be customized separately).
-The fuse length size can be touched on the touch screen by the “Total Length “display box, pop-up digital setting keyboard and the length can be set arbitrarily.
-Wire break accuracy is approximately +/-0.060inch- +/-0.500inch.

3. Feature:

Air Source:0.4MPa
Wire Diameter:1-5mm
Cutting Length:10cm to 30m
Language: English/Chinese
