Automatic Wire Cable Coiling Tying Machine

This Automatic Wire Cable Coiling  Tying Machine is equipped with stepper motors, adopted PLC touch screen to control cable tie length, automatic cut the cable tie and twist it. The winding speed and winding cycle are both adjustable. This machine is widely used to process AC/DC power cord, USB data cable, video cable, HDMI cable, and other types of transmission wire.

  • Description
  • Inquery

Automatic wire cable coiling tying machine working vedio:

Model No.

TQ5-30

TQ 15-45

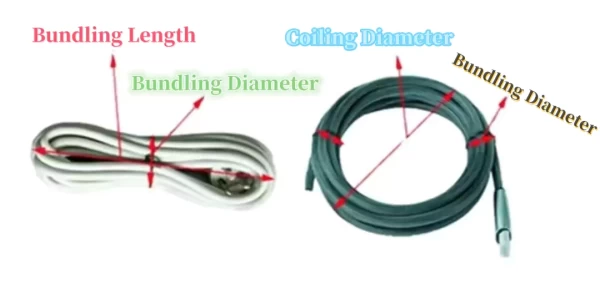

Applicable Nylon Tie Binding Length

65-140 MM

110-190 MM

Binding Diameter

5-30 MM

15-45 MM

Binding Speed

1 second per binding

Winding Spacing

50-200 MM

50-250 MM

Winding Speed

1-10 circles (adjustable)

Working Voltage

AC220 50/60HZ

Power

<200W

Size

700x550x400 MM

Net Weight

45KG
